Manufacturer:上海邦泉泵業制造有限公司
Shanghai Bangquan Pump manufacturing Co., LTD
+86-21-57648032 shbqmp@163.com
產品特點
1.采用精密鑄造,表面光滑整潔,并具有更高的強度。
2.閥球采用專用機進一步研磨加工,圓整度高,密封性能好。
3.精確計算膜片移動距離,降低膜片受力,具有更長的使用壽命。
4.快速接頭連接設計,密封性能好。
5.三段式上下蓋,安裝拆卸清洗靈活方便。
6.一體式設計的膜片護塊,具有優異的耐壓,耐高溫性能。
7.膜片連桿采用耐磨不銹鋼,具有更好的耐腐蝕性,更長的壽命。

Bangquan Sanitary garde diaphragm pump characteriastic
1. Adopt precision casting to make sure the high strength and surface is smooth.
2. Adopt special machine to grind valve ball to promote roundness and lift-off seal.
3. Accurate calculation of diaphragm movement distance, reduce the diaphragm force,so that it has a longer service life.
4. Quick joint connection design, good sealing performance, actual dry suction can reach 4-7 meters.
5. Three-stage upper and lower cover for easy installation, disassembly and cleaning.
6. One piece design diaphragm protection module, with excellent pressure, high temperature res is t a n ce , widely used in the industry of filter press.
7. Diaphragm connecting rod adopts wear-resistant stainless steel for better corrosion resistance and longer life.
Bangquan Sanitary grade pneumatic diaphragm pump applications:
1. Beverage industry : fermentation,wine, juice ,beer , milk , ice-cream
2. Medicine : glucose, oral liquid, ointment, alcohol, plasma
3. Milk production : milk , cheese, butter, yogurt, grease
4. Meat industry: sausage stuffing, fat, broth, gelatin, pet food
5. Canned food industry: potato salad, soups, stews, tomatoes, appetizers, puddings, condiments
6. Cosmetics industry: perfumes, creams, body lotions, shampoos, toothpastes
7. Condiment industry: salt agent, acid agent, sweetener, umami agent, soy sauce, vinegar, pepper sauce
8. Daily chemical industry: detergent, cream, shampoo, latex, hand cream, hair gel
9. Liquor industry: white wine, red wine, foreign wine, health wine, yellow rice wine, beer, wine

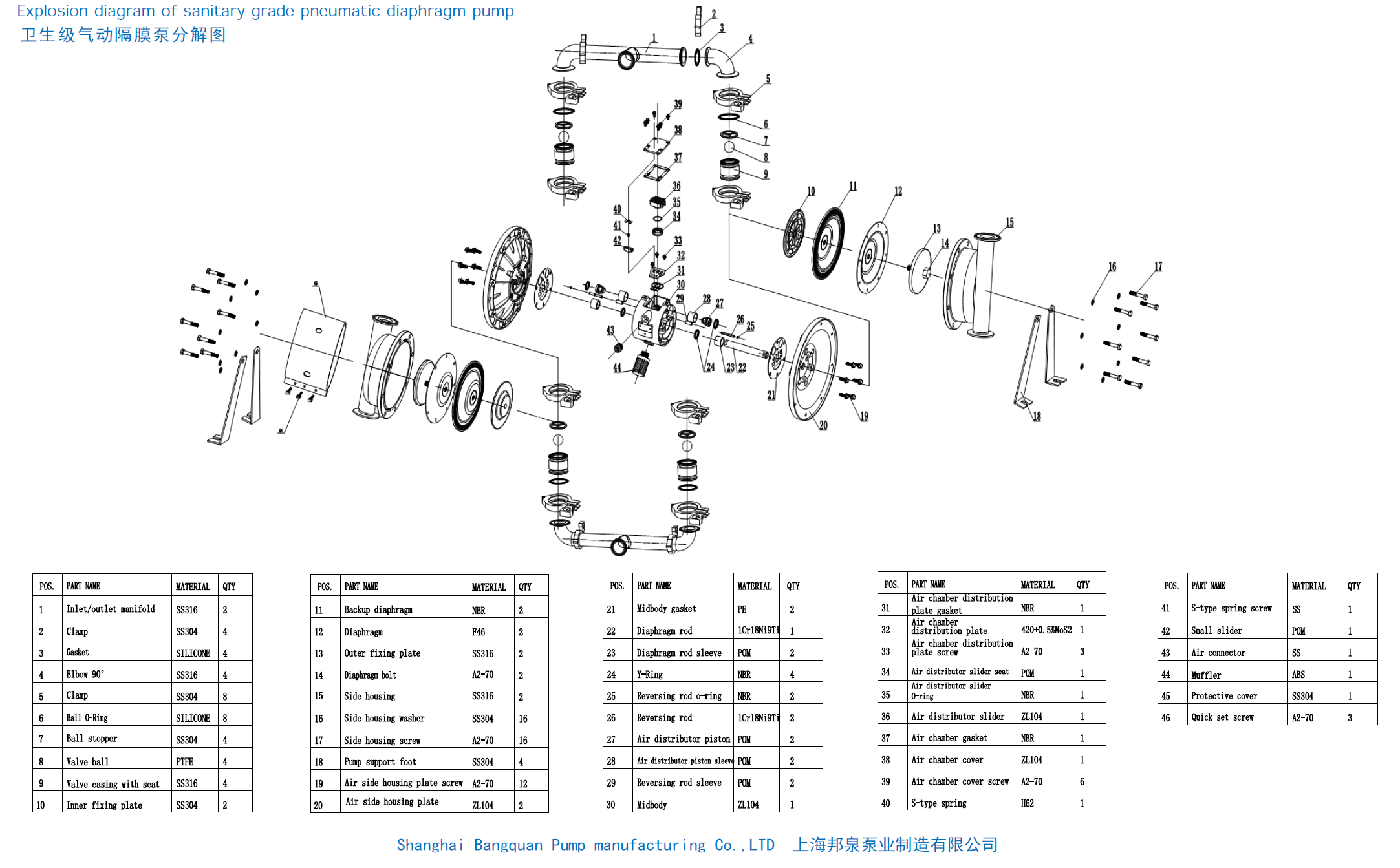

衛生級氣動隔膜泵分解圖 Explosion diagram of sanitary grade pneumatic diaphragm pump
